Iscar

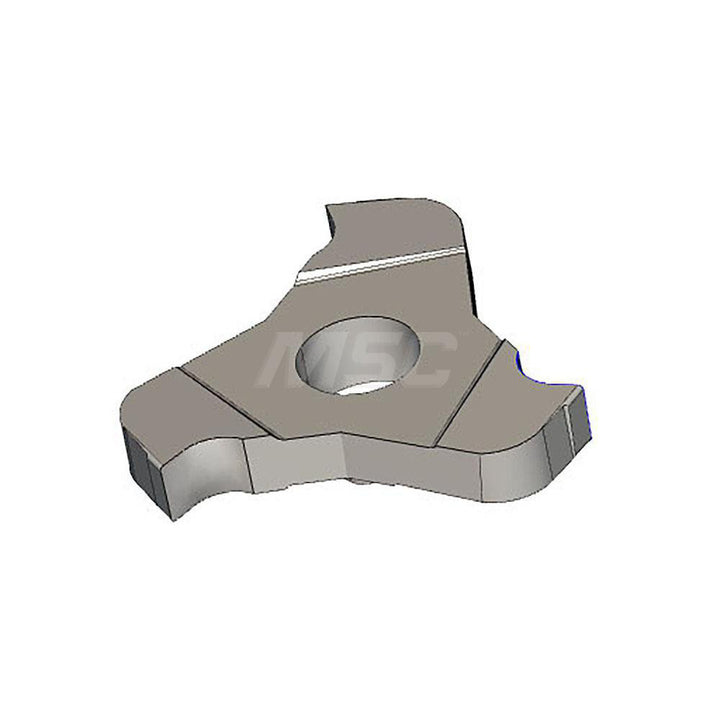

TRI 16RK-2.25-0.15 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6003518
MFR# 6003518ISO/ANSI# TRI 16RK-2.25-0.15Cat# TRI 16RK-2.25-0.15 IC908Series CHAMSLIT
$42.34List $54.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003518 is a TRI 16RK-2.25-0.15 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeTRI 16RK-2.25-0.15 IC908
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius0.0059
Cutter series compatibilityTRIB
Cutting edge effective length0.0886
Cutting edge styleHoned
Included angle degree60
Inscribed circle0.6260
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size16
Insert size code16RK2.25-0.15
Insert styleTRI16RK
Iso codeTRI 16RK-2.25-0.15
Length0.6260
Length range0.6000 to 0.6500
Manufacturers catalog numberTRI 16RK-2.25-0.15 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1890
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.6260
