Iscar

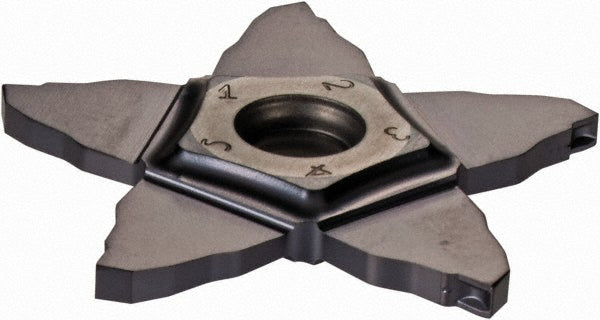

PENTA 34N200C020 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6003537
MFR# 6003537ISO/ANSI# PENTA 34N200C020Cat# PENTA 34N200C020Series PentaCut
$61.20List $78.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003537 is a PENTA 34N200C020 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting width0.0790
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size34N200
Insert size code34N200C020
Insert stylePENTA
Iso codePENTA 34N200C020
Manufacturers catalog numberPENTA 34N200C020
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.3150
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall width0.1690
Primary workpiece materialUniversal
RakePositive
StandardsISO 13399
