Iscar

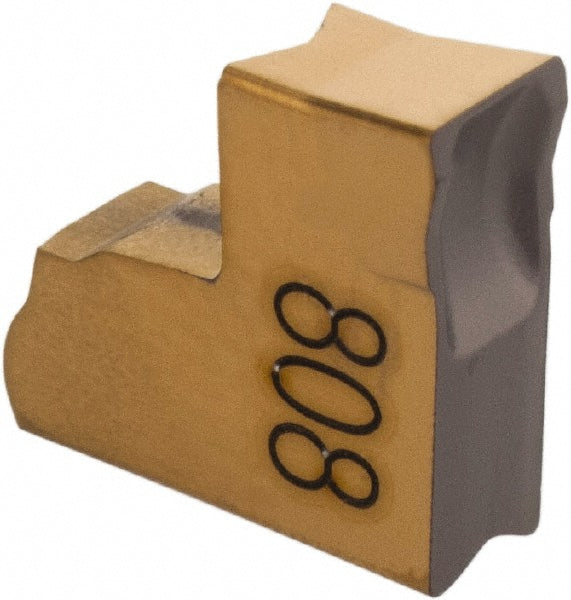

ISO 13399 Solid Carbide Insert, Grade IC808, Coated - Iscar 6003577
MFR# 6003577ISO/ANSI# ISO 13399Cat# TAG N3CSeries Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003577 is a ISO 13399 solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1200
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Insert styleTAG
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberTAG N3C
Manufacturer gradeIC808
Material gradeP15-P30
Multi use toolNo
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
