Iscar

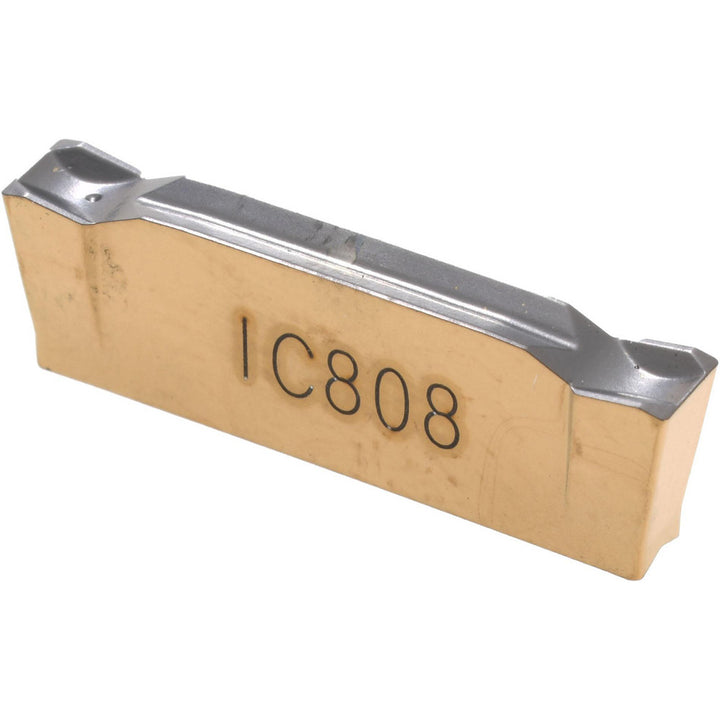

ISO 13399 Carbide Insert, Grade IC808, Bright/Uncoated - Iscar 6003581
MFR# 6003581ISO/ANSI# ISO 13399Cat# DGN 3102CSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
Description
The Iscar 6003581 is a ISO 13399 carbide indexable insert, grade IC808, Bright/Uncoated coated. Suited for universal.
Specifications
ChipbreakerC
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberDGN 3102C
Manufacturer gradeIC808
Maximum depth of cut0.7090
Multi use toolYes
Overall length0.7910
Primary workpiece materialUniversal
Single or double endSingle
StandardsISO 13399
