Iscar

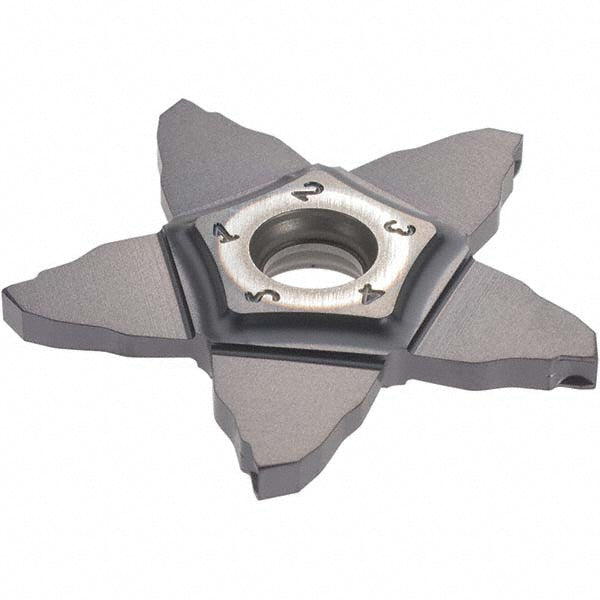

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003603
MFR# 6003603ISO/ANSI# ISO 13399Series PentaCut
$61.20List $78.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003603 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.0906
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code34N230
Insert stylePENTA
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
StandardsISO 13399
Stocking categoryD
