Iscar

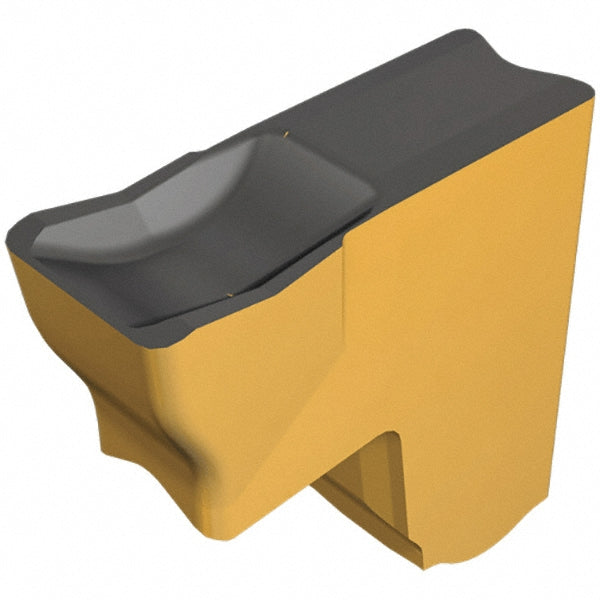

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6003615
MFR# 6003615ISO/ANSI# ISO 13399Series Tang-Grip
$31.27List $40.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6003615 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutting tool applicationSlitting
Cutting width0.3150
Insert handNeutral
Insert materialSolid Carbide
Insert size code8
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC830
Multi use toolYes
Overall width0.3150
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
