Iscar

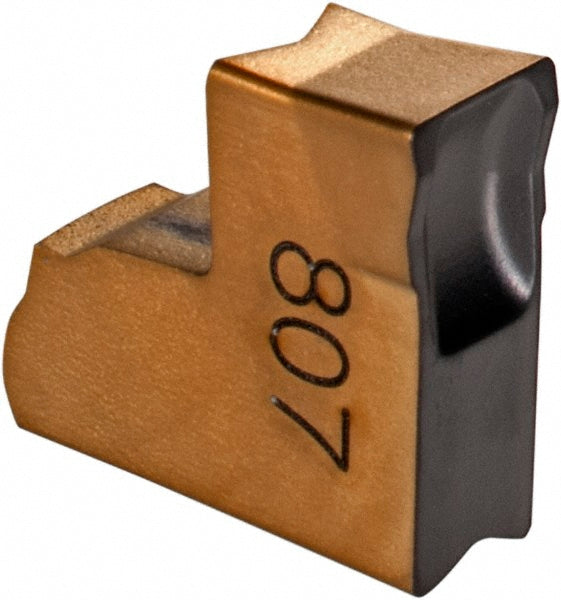

ISO 13399 Solid Carbide Insert, Grade IC807, TiN - Iscar 6003625
MFR# 6003625ISO/ANSI# ISO 13399Cat# TAG N3CSeries Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6003625 is a ISO 13399 solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiN
Coating processPVD
Corner radius0.0079
Cutting tool applicationSlitting
Cutting width0.1200
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleTAGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberTAG N3C
Manufacturer gradeIC807
Material gradeSubmicron
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
