Iscar

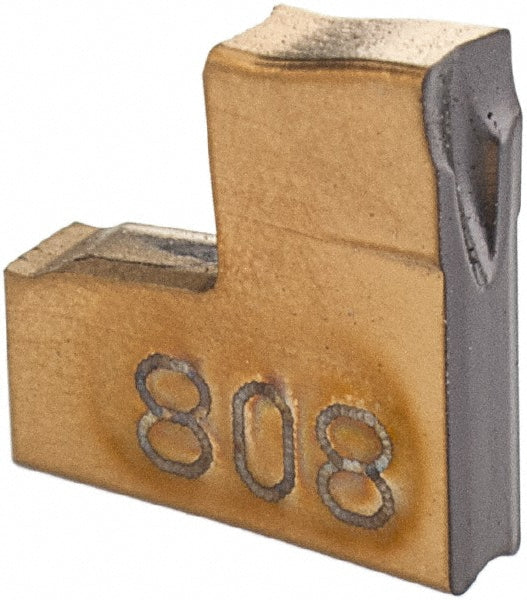

ISO 13399 Solid Carbide Insert, Grade IC808, TiAlN - Iscar 6003632
MFR# 6003632ISO/ANSI# ISO 13399Series Tang-Grip
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003632 is a ISO 13399 solid carbide indexable insert, grade IC808, TiAlN coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.0787
Insert handLeft Hand
Insert materialSolid Carbide
Insert size code2
Insert styleTAG
Iso codeISO 13399
Lead angle6
Lead angle directionLeft Hand
Manufacturer gradeIC808
Multi use toolNo
Overall width0.0787
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
