Iscar

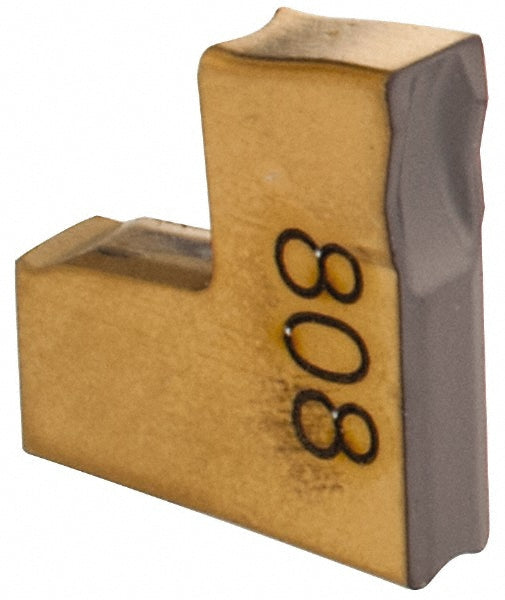

ISO 13399 Solid Carbide Insert, Grade IC808, Coated - Iscar 6003640
MFR# 6003640ISO/ANSI# ISO 13399Cat# TAG L2C-6DSeries Tang-Grip
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003640 is a ISO 13399 solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.0807
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2
Insert styleTAG
Iso codeISO 13399
Lead angle6
Lead angle directionLeft Hand
Manufacturers catalog numberTAG L2C-6D
Manufacturer gradeIC808
Material gradeSubmicron
Multi use toolNo
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Stocking categoryD
