Iscar

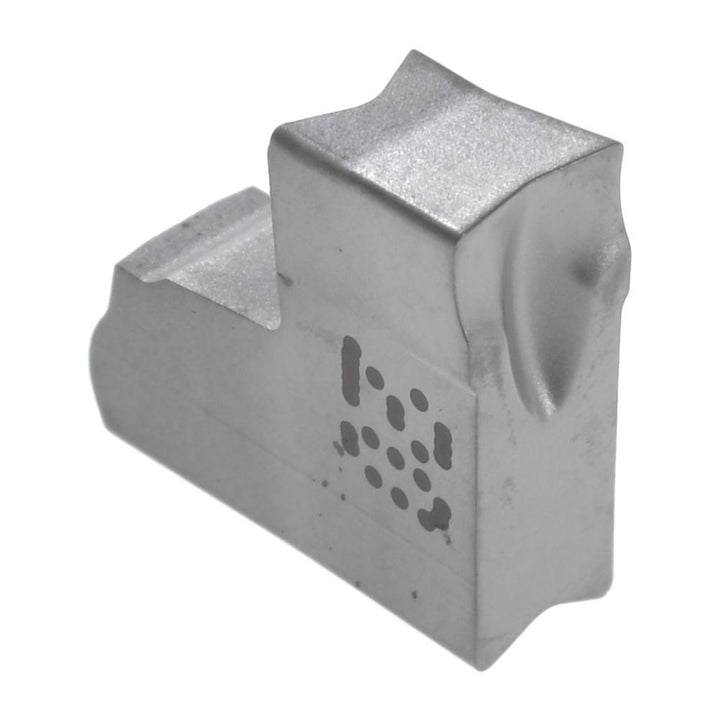

ISO 13399 Carbide Insert, Grade IC20 - Iscar 6003644
MFR# 6003644ISO/ANSI# ISO 13399Series Tang-Grip
$16.58List $20.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialCarbide
Description
The Iscar 6003644 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
ChipbreakerJ
Coating processUncoated
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1201
Insert handNeutral
Insert materialCarbide
Insert size code3
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC20
Material gradeC2; C3
Multi use toolYes
Overall width0.1201
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
