Iscar

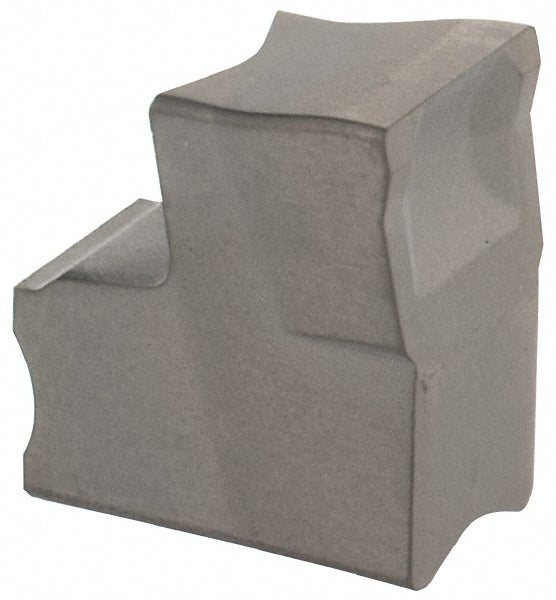

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6003650
MFR# 6003650ISO/ANSI# ISO 13399Cat# TAG N5CSeries Tang-Grip
$16.45List $21.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6003650 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
ChipbreakerC
Coating processUncoated
Corner radius0.0098
Cutting tool applicationSlitting
Cutting width0.1990
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code5
Insert styleTAG
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberTAG N5C
Manufacturer gradeIC20
Material gradeC2; C3
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Stocking categoryD
