Iscar

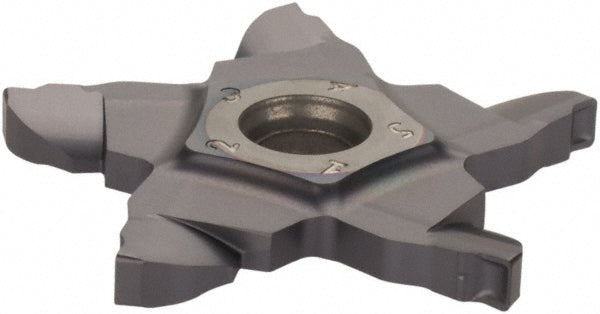

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6003660
MFR# 6003660ISO/ANSI# ISO 13399Cat# PENTA 34F400-0.40-22RSeries PENTA
$86.00List $110.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003660 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size34F30004022
Insert size code34F30004022
Insert stylePENTA
Iso codeISO 13399
Manufacturers catalog numberPENTA 34F400-0.40-22R
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1969
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Primary workpiece materialUniversal
StandardsISO 13399
