Iscar

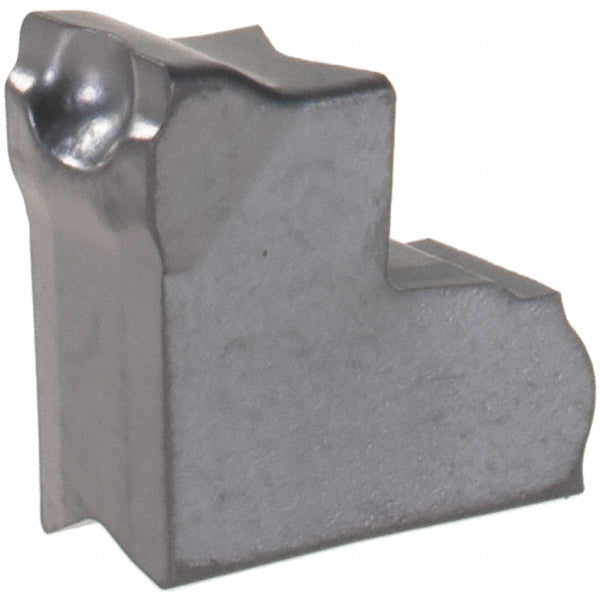

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003663
MFR# 6003663ISO/ANSI# ISO 13399Series Tang-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003663 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerUT
Coating finishCoated
Coating processPVD
Corner radius0.0118
Cutting tool applicationGrooving; Parting
Cutting width0.1575
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC908
Material gradeSubmicron
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Stocking categoryD
