Iscar

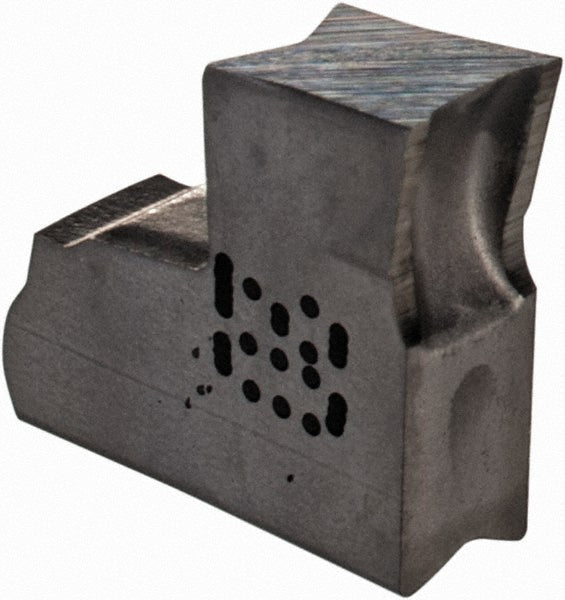

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6003670
MFR# 6003670ISO/ANSI# ISO 13399Cat# TAG N3ASeries Tang-Grip
$14.43List $18.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6003670 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
ChipbreakerA
Coating processUncoated
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1200
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleTAGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberTAG N3A
Manufacturer gradeIC20
Material gradeC2; C3
Multi use toolNo
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
