Iscar

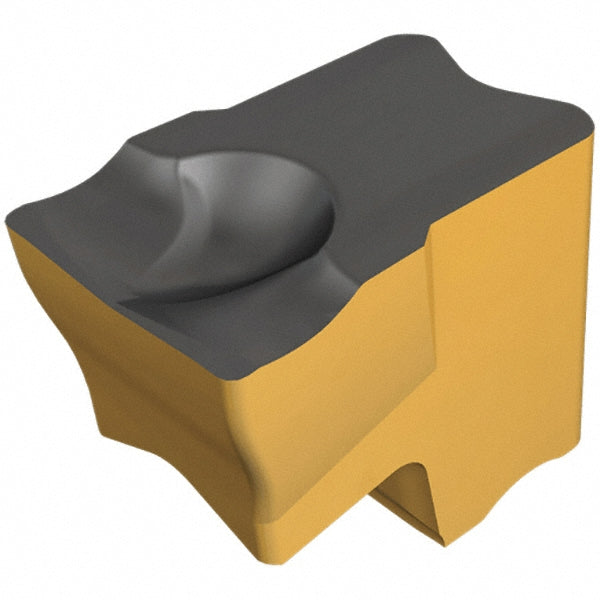

ISO 13399 Solid Carbide Insert, Grade IC808, Coated - Iscar 6003695
MFR# 6003695ISO/ANSI# ISO 13399Cat# TAG N2JSSeries Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003695 is a ISO 13399 solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerJS
Coating finishCoated
Coating processPVD
Corner radius0.0008
Cutting tool applicationGrooving; Parting
Cutting width0.0787
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2
Insert styleTAG
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberTAG N2JS
Manufacturer gradeIC808
Material gradeSubmicron
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Stocking categoryD
