Iscar

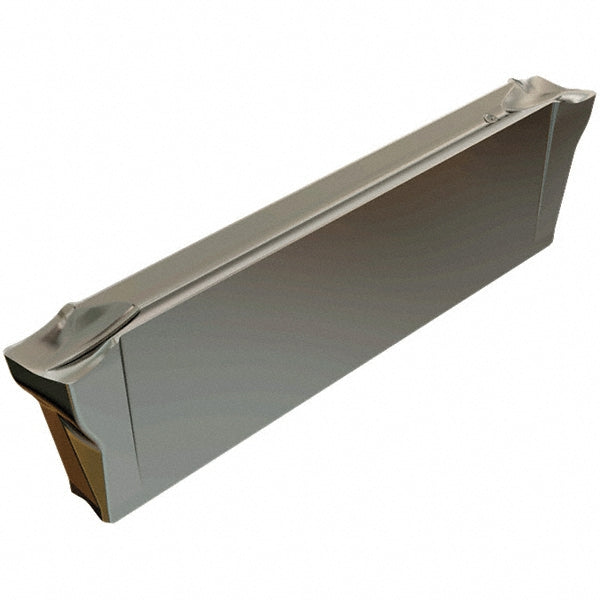

ISO 13399 Solid Carbide Insert, Grade IC830, Coated - Iscar 6004514
MFR# 6004514ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6004514 is a ISO 13399 solid carbide indexable insert, grade IC830, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0020
Cutting tool applicationParting
Cutting width0.0590
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size0
Insert size code1500
Insert styleDGR
Iso codeISO 13399
Lead angle8
Lead angle directionRight Hand
Manufacturer gradeIC830
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8228
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
