Iscar

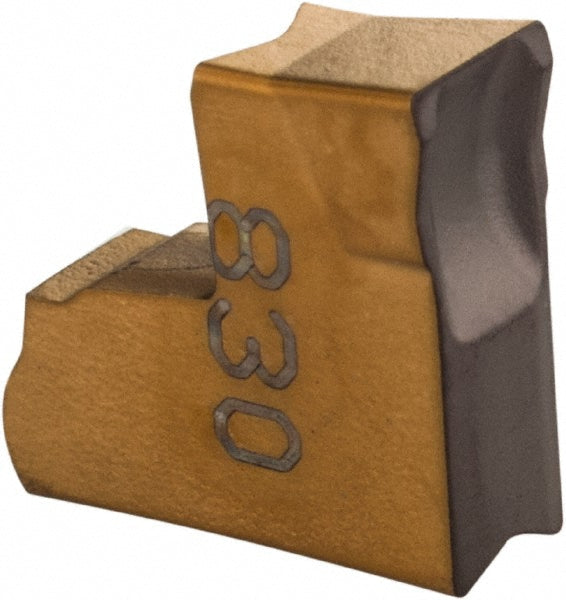

ISO 13399 Solid Carbide Insert, Grade IC830, Coated - Iscar 6004544
MFR# 6004544ISO/ANSI# ISO 13399Cat# TAG N3MSeries Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6004544 is a ISO 13399 solid carbide indexable insert, grade IC830, Coated coated. Suited for superalloy.
Specifications
ChipbreakerM
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Insert styleTAG
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberTAG N3M
Manufacturer gradeIC830
Multi use toolYes
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Stocking categoryD
