Iscar

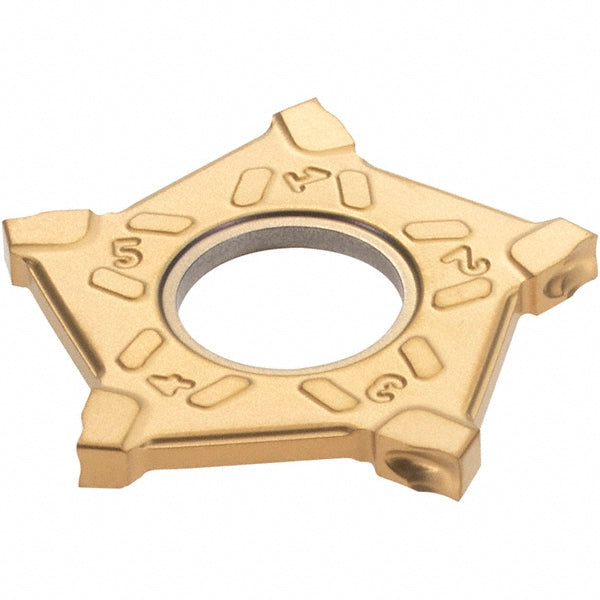

ISO 13399 Solid Carbide Insert, Grade IC808, Coated - Iscar 6004654
MFR# 6004654ISO/ANSI# ISO 13399Cat# PENTA D22N200J020Series PentaIQGrip
$53.88List $69.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6004654 is a ISO 13399 solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.0790
Insert handNeutral
Insert materialSolid Carbide
Insert size codeD22N200
Insert stylePENTA
Iso codeISO 13399
Lead angle20
Lead angle directionNeutral
Manufacturers catalog numberPENTA D22N200J020
Manufacturer gradeIC808
Material gradeSubmicron
Multi use toolYes
Primary workpiece materialUniversal
StandardsISO 13399
