Iscar

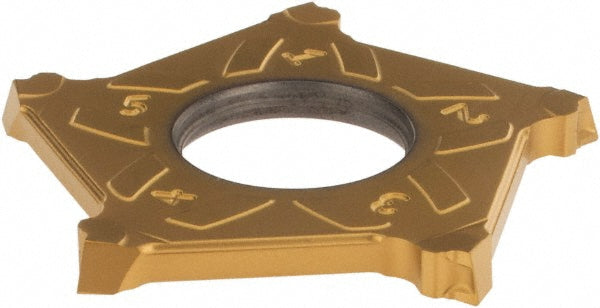

ISO 13399 Solid Carbide Insert, Grade IC808G, TiAlN - Iscar 6004661
MFR# 6004661ISO/ANSI# ISO 13399Cat# PENTA D40R300C-15DSeries PentaIQGrip
$63.54List $81.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808G
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6004661 is a ISO 13399 solid carbide indexable insert, grade IC808G, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1180
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size codeD40R300
Insert stylePENTA
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberPENTA D40R300C-15D
Manufacturer gradeIC808G
Material gradeSubmicron
Multi use toolNo
Primary workpiece materialUniversal
StandardsISO 13399
Stocking categoryD
