Iscar

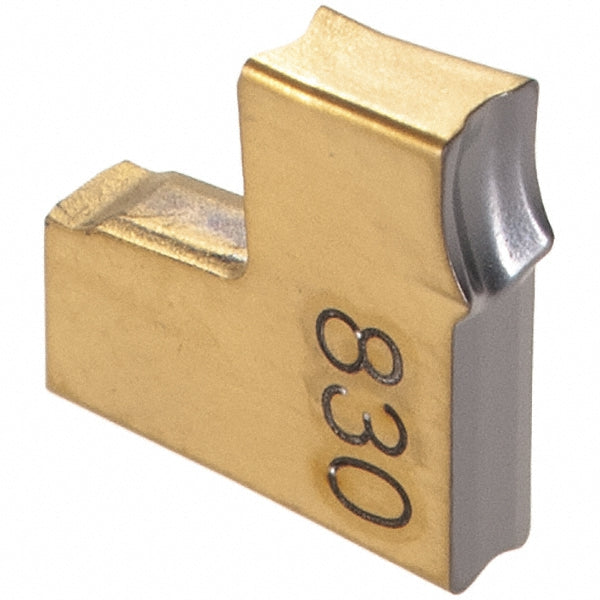

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6004671
MFR# 6004671ISO/ANSI# ISO 13399Series Tang-Grip
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6004671 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy.
Specifications
ChipbreakerLF
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.0790
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size code2
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC830
Multi use toolYes
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
