Iscar

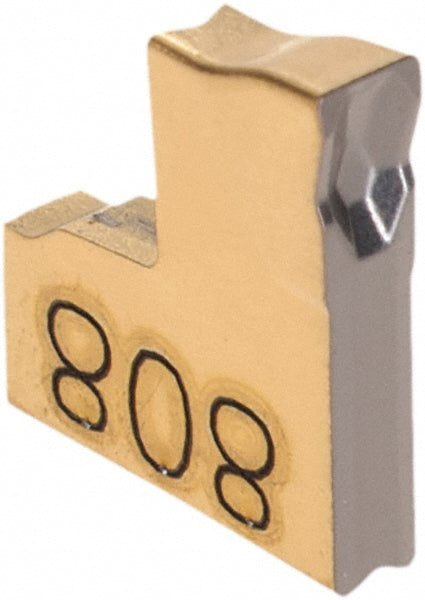

ISO 13399 Solid Carbide Insert, Grade IC808, TiAlN - Iscar 6004696
MFR# 6004696ISO/ANSI# ISO 13399Series Tang-Grip
$16.69List $21.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6004696 is a ISO 13399 solid carbide indexable insert, grade IC808, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0063
Cutting tool applicationSlitting
Cutting width0.0630
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size code1.6
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC808
Material gradeFine Grain
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
