Iscar

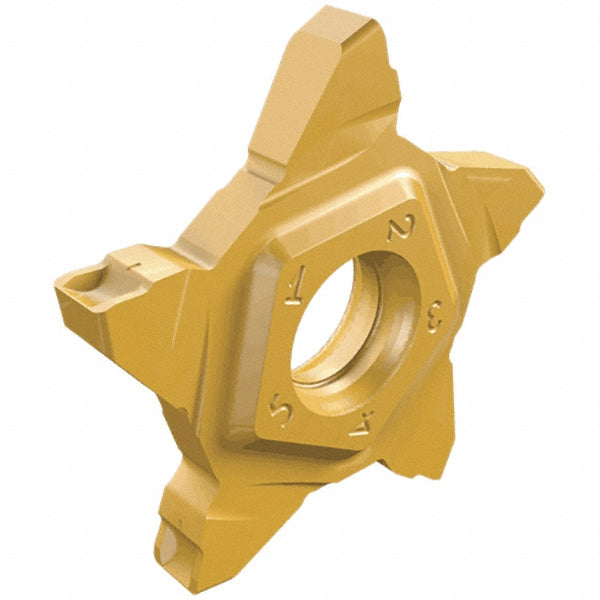

ISO 13399 Solid Carbide Insert, Grade IC908, TiN - Iscar 6004781
MFR# 6004781ISO/ANSI# ISO 13399Cat# PENTA 24N300C020Series PentaCut
$63.70List $81.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6004781 is a ISO 13399 solid carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code24N300
Insert stylePENTA
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberPENTA 24N300C020
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.2441
Multi use toolYes
Overall width0.1575
Primary workpiece materialUniversal
StandardsISO 13399
