Iscar

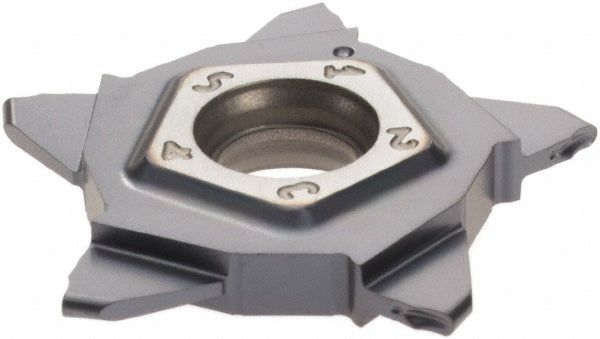

ISO 13399 Solid Carbide Insert, Grade IC908, TiN - Iscar 6004811
MFR# 6004811ISO/ANSI# ISO 13399Cat# PENTA 24N100J050Series PentaCut
$65.96List $84.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6004811 is a ISO 13399 solid carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishTiN
Coating processPVD
Corner radius0.0197
Cutting tool applicationGrooving
Cutting width0.0394
Full radiusYes
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code24N100
Insert stylePENTA
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberPENTA 24N100J050
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.1378
Multi use toolNo
Overall width0.1575
Primary workpiece materialUniversal
StandardsISO 13399
