Iscar

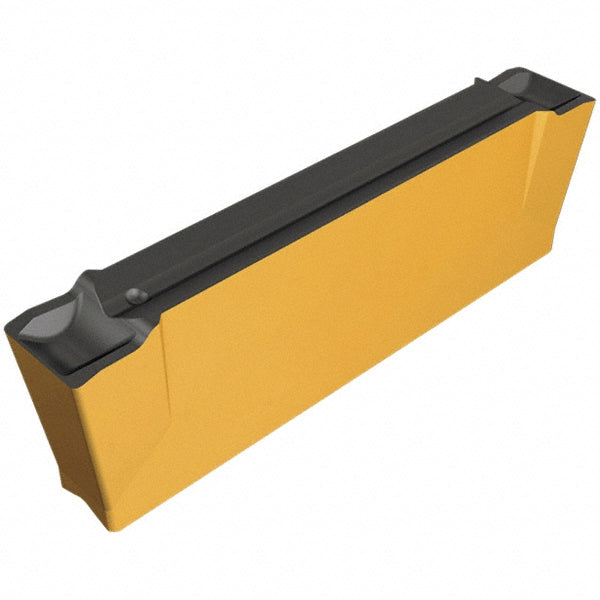

ISO 13399 Carbide Insert, Grade IC830, TiAlN/AlTiN/TiN - Iscar 6004882
MFR# 6004882ISO/ANSI# ISO 13399Cat# DGN 2002MFSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingTiAlN/AlTiN/TiN
Description
The Iscar 6004882 is a ISO 13399 carbide indexable insert, grade IC830, TiAlN/AlTiN/TiN coated. Suited for superalloy.
Specifications
ChipbreakerMF
Coating finishTiAlN/AlTiN/TiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Insert handNeutral
Insert materialCarbide
Insert size code2002
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberDGN 2002MF
Manufacturer gradeIC830
Maximum depth of cut1.1810
Multi use toolYes
Overall length0.7830
Primary workpiece materialSuperalloy
Relief angle7.00
StandardsISO 13399
