Iscar

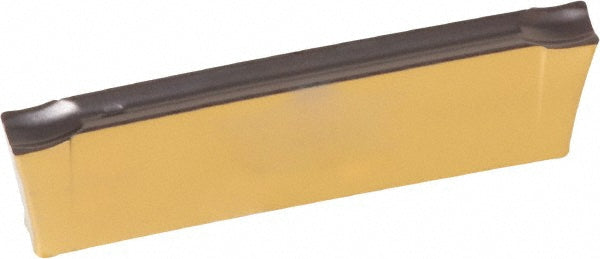

ISO 13399 Solid Carbide Insert, Grade IC830, TiN - Iscar 6004884
MFR# 6004884ISO/ANSI# ISO 13399Cat# DGN 2002LFSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6004884 is a ISO 13399 solid carbide indexable insert, grade IC830, TiN coated. Suited for superalloy.
Specifications
ChipbreakerLF
Coating finishTiN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code2002
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberDGN 2002LF
Manufacturer gradeIC830
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7795
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsISO 13399
