Iscar

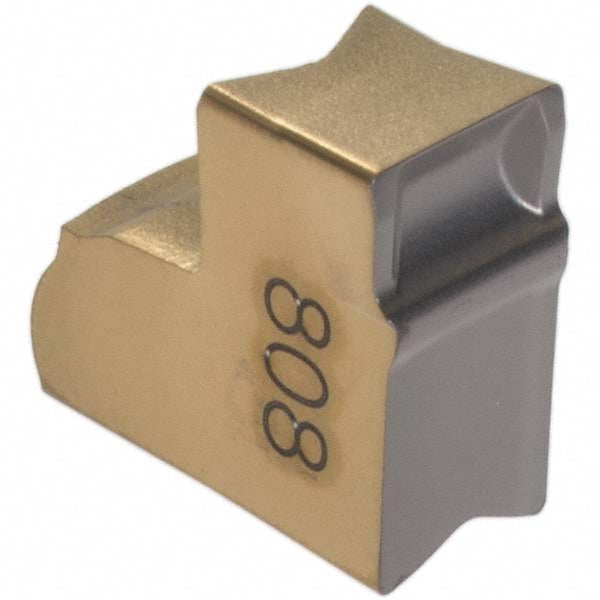

ISO 13399 Solid Carbide Insert, Grade IC808, TiAlN - Iscar 6004961
MFR# 6004961ISO/ANSI# ISO 13399Cat# TAG N4MFSeries Tang-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6004961 is a ISO 13399 solid carbide indexable insert, grade IC808, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0100
Cutting tool applicationSlitting
Cutting width0.1570
Insert handNeutral
Insert materialSolid Carbide
Insert size code4
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberTAG N4MF
Manufacturer gradeIC808
Material gradeFine Grain
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
Width tolerance0.05 (mm)
