Iscar

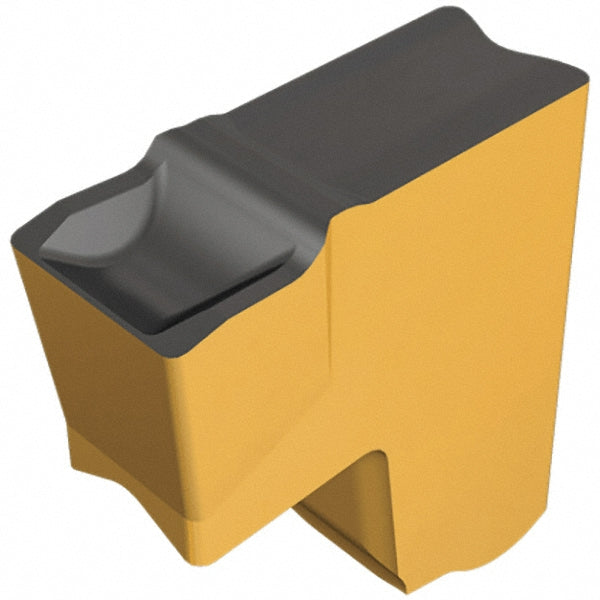

ISO 13399 Solid Carbide Insert, Grade IC5400, TiCN - Iscar 6004963
MFR# 6004963ISO/ANSI# ISO 13399Cat# TAG N4MFSeries Tang-Grip
$22.69List $28.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC5400
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6004963 is a ISO 13399 solid carbide indexable insert, grade IC5400, TiCN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerC
Coating finishTiCN
Coating processCVD
Corner radius0.0100
Cutting tool applicationSlitting
Cutting width0.1570
Insert handNeutral
Insert materialSolid Carbide
Insert size code4
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberTAG N4MF
Manufacturer gradeIC5400
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
StandardsISO 13399
Width tolerance0.05 (mm)
