Iscar

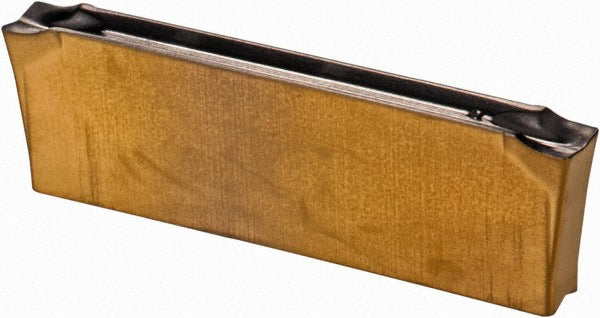

ISO 13399 Solid Carbide Insert, Grade IC808, TiN - Iscar 6011372
MFR# 6011372ISO/ANSI# ISO 13399Cat# DGN 2202JSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6011372 is a ISO 13399 solid carbide indexable insert, grade IC808, TiN coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishTiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.0870
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code2202
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberDGN 2202J
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.7090
Multi use toolYes
Overall length0.7800
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
