Iscar

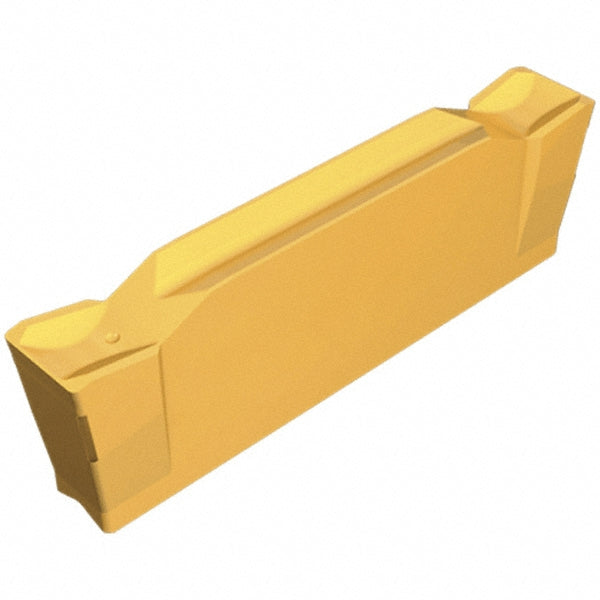

Solid Carbide Insert, Grade IC808, Coated - Iscar 6011376
MFR# 6011376Series Do-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6011376 is a solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0120
Cutting tool applicationGrooving; Parting
Cutting width0.1575
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code4003
Insert styleDGN
Lead angle directionNeutral
Manufacturer gradeIC808
Material gradeSubmicron
Multi use toolYes
Overall length0.7400
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
