Iscar

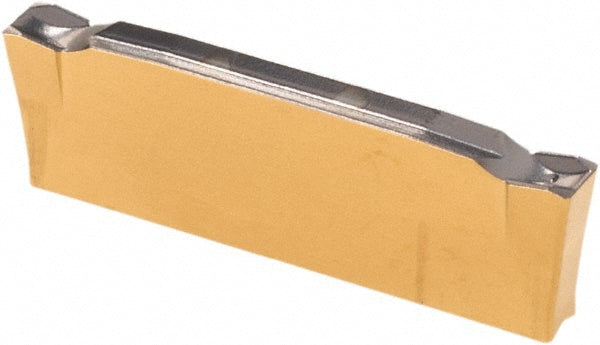

ISO 13399 Solid Carbide Insert, Grade IC808, TiAlN - Iscar 6011377
MFR# 6011377ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6011377 is a ISO 13399 solid carbide indexable insert, grade IC808, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.0866
Insert handNeutral
Insert materialSolid Carbide
Insert size code2202
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC808
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7795
Overall width0.0866
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
