Iscar
ISO 13399 Carbide Insert, Grade IC808, Coated - Iscar 6011382
MFR# 6011382ISO/ANSI# ISO 13399Series Do-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingCoated
Description

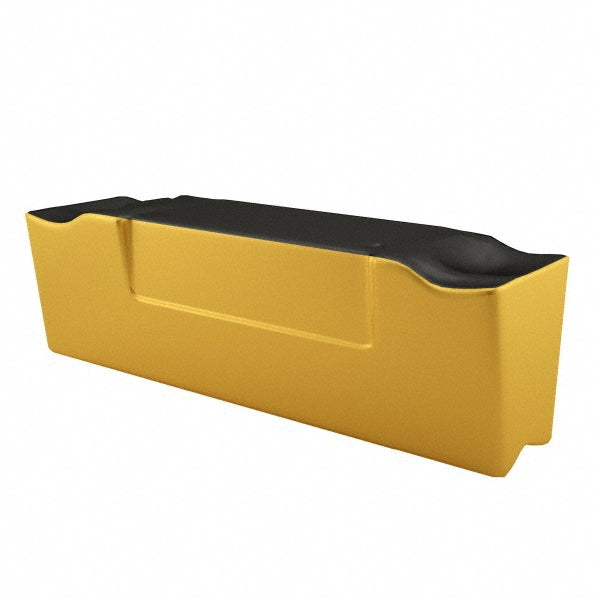

The Iscar 6011382 is a ISO 13399 carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0120
Cutting tool applicationGrooving; Parting
Cutting width0.1575
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size code4003
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC808
Material gradeSubmicron
Multi use toolYes
Overall length0.7441
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
