Iscar

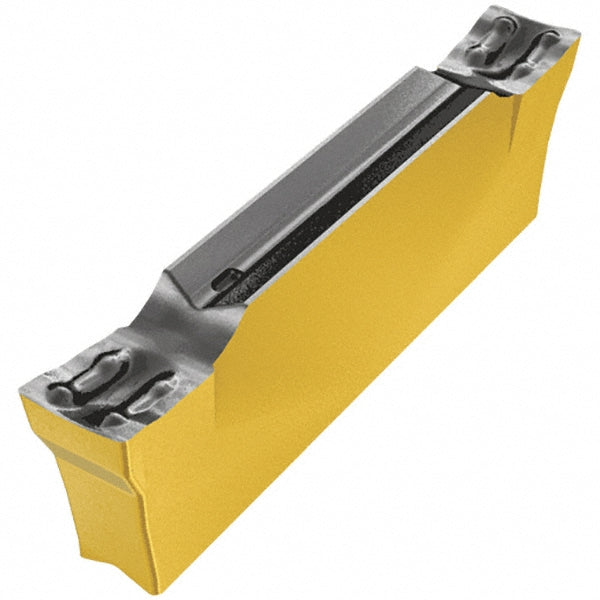

ISO 13399 Solid Carbide Insert, Grade IC808, Coated - Iscar 6011385
MFR# 6011385ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6011385 is a ISO 13399 solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerZ
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size2
Insert size code3002
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.8228
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
