Iscar

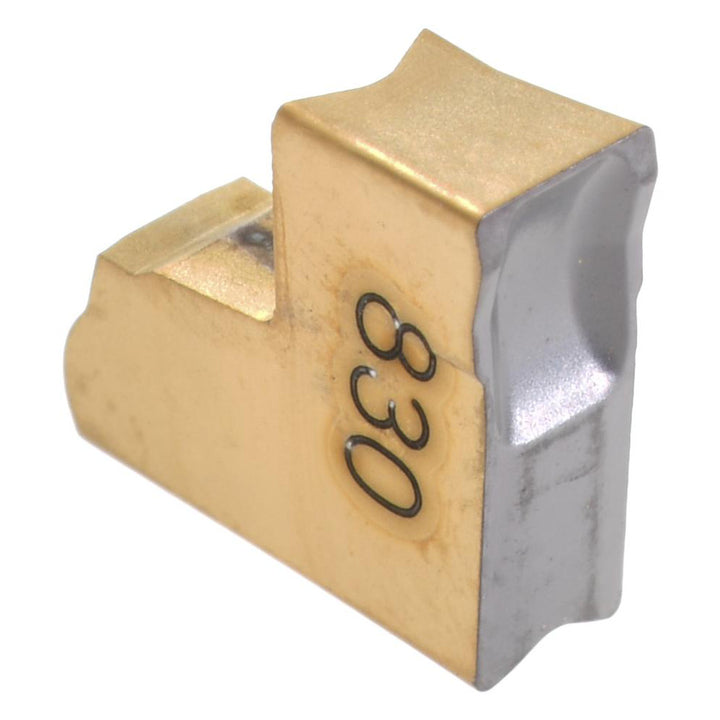

ISO 13399 Carbide Insert, Grade IC830, Coated - Iscar 6011386
MFR# 6011386ISO/ANSI# ISO 13399Cat# TAG N3CSeries Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingCoated
Description
The Iscar 6011386 is a ISO 13399 carbide indexable insert, grade IC830, Coated coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationSlitting
Cutting width0.1180
Insert handNeutral
Insert materialCarbide
Insert size code3
Insert styleTAG
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberTAG N3C
Manufacturer gradeIC830
Material gradeC1; C2; C6; C7
Multi use toolYes
Primary workpiece materialSuperalloy
Relief angle7.00
StandardsISO 13399
