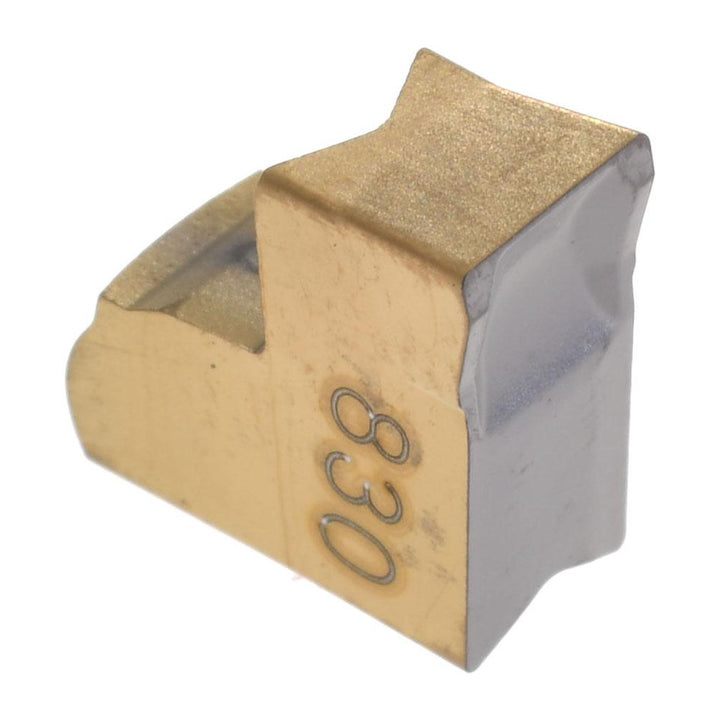

ISO 13399 Carbide Insert, Grade IC830, AlTiN/TiN - Iscar 6011388
MFR# 6011388ISO/ANSI# ISO 13399Series Tang-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingAlTiN/TiN
Description
The Iscar 6011388 is a ISO 13399 carbide indexable insert, grade IC830, AlTiN/TiN coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishAlTiN/TiN
Coating processPVD
Corner radius0.0094
Cutting tool applicationSlitting
Cutting width0.1575
Insert handNeutral
Insert materialCarbide
Insert size code4
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC830
Multi use toolYes
Overall width0.1575
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
