Iscar

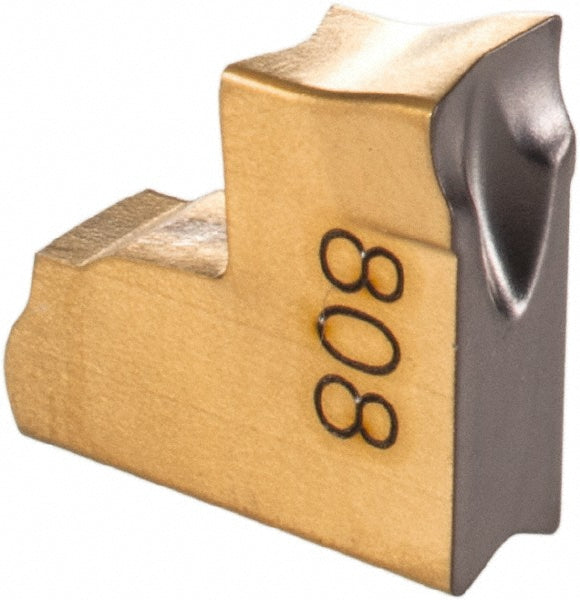

ISO 13399 Solid Carbide Insert, Grade IC808, TiN - Iscar 6011400
MFR# 6011400ISO/ANSI# ISO 13399Cat# TAG R3J-6DSeries Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6011400 is a ISO 13399 solid carbide indexable insert, grade IC808, TiN coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishTiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleTAGR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturers catalog numberTAG R3J-6D
Manufacturer gradeIC808
Material gradeSubmicron
Multi use toolNo
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
