Iscar

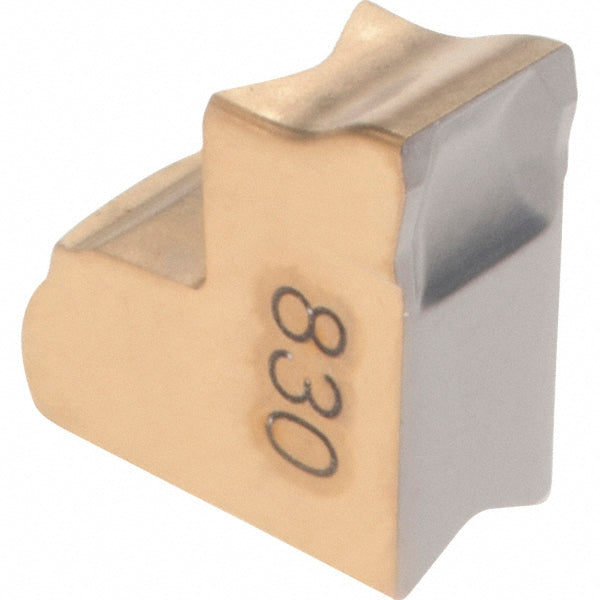

ISO 13399 Solid Carbide Insert, Grade IC830, Coated - Iscar 6011410
MFR# 6011410ISO/ANSI# ISO 13399Series Tang-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6011410 is a ISO 13399 solid carbide indexable insert, grade IC830, Coated coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0094
Cutting tool applicationParting
Cutting width0.1594
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4
Insert styleTAG
Iso codeISO 13399
Lead angle4
Lead angle directionLeft Hand
Manufacturer gradeIC830
Multi use toolNo
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Stocking categoryD
