Iscar

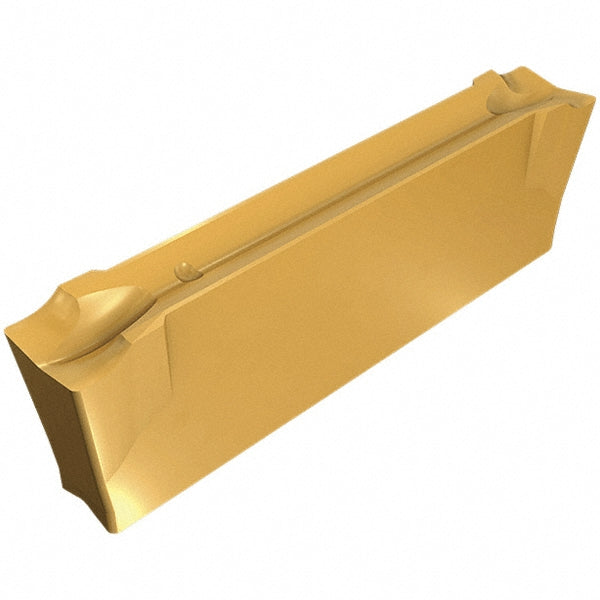

ISO 13399 Solid Carbide Insert, Grade IC5400, TiCN - Iscar 6080225
MFR# 6080225ISO/ANSI# ISO 13399Series Do-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC5400
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6080225 is a ISO 13399 solid carbide indexable insert, grade IC5400, TiCN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size2
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC5400
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7913
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
