Iscar

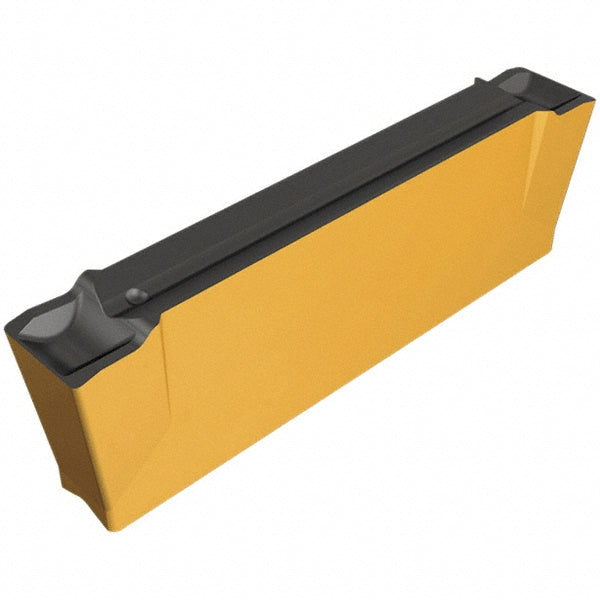

ISO 13399 Solid Carbide Insert, Grade IC5400, TiCN - Iscar 6080680
MFR# 6080680ISO/ANSI# ISO 13399Series Do-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC5400
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6080680 is a ISO 13399 solid carbide indexable insert, grade IC5400, TiCN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerMF
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size code3002
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC5400
Maximum depth of cut0.7090
Multi use toolYes
Overall length0.7900
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
