Iscar

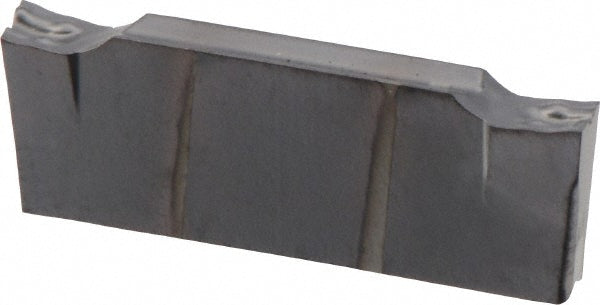

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6090231
MFR# 6090231ISO/ANSI# ISO 13399Series Do-Grip
$33.81List $43.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6090231 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerZS
Coating finishCoated
Coating processPVD
Corner radius0.0008
Cutting tool applicationParting
Cutting width0.1180
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3000
Insert styleDGR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8031
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
Stocking categoryD
