Iscar

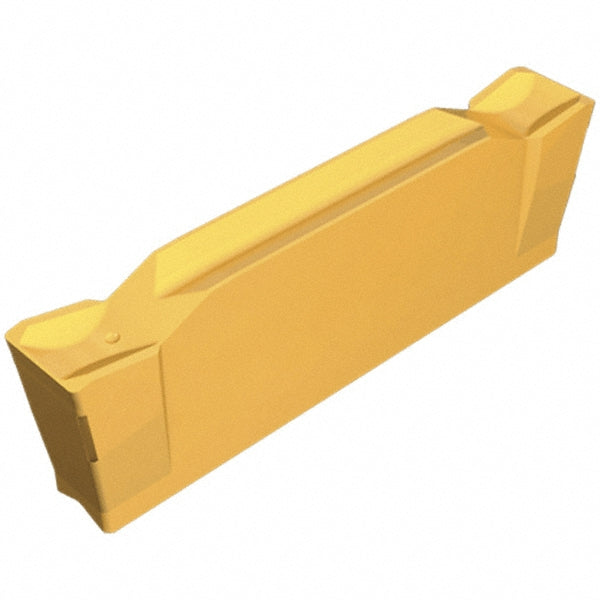

ISO 13399 Solid Carbide Insert, Grade IC807, Coated - Iscar 6092610
MFR# 6092610ISO/ANSI# ISO 13399Series Do-Grip
$32.74List $41.20
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC807
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6092610 is a ISO 13399 solid carbide indexable insert, grade IC807, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size2
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7913
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
