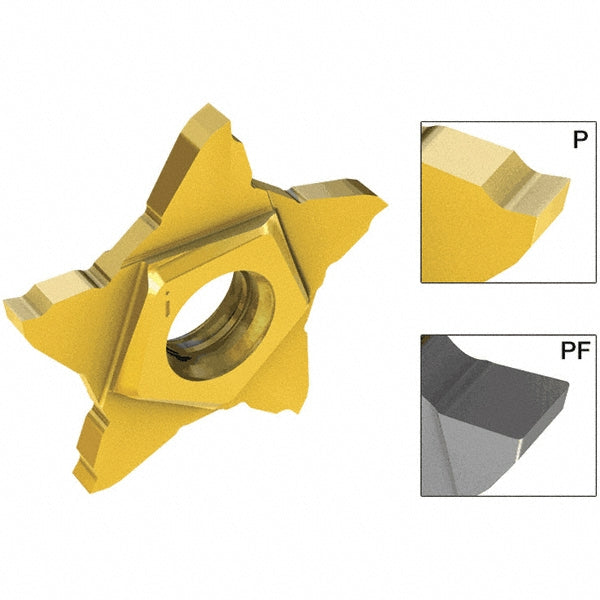

ISO 13399 Solid Carbide Insert, Grade IC908, TiN - Iscar 6093325
MFR# 6093325ISO/ANSI# ISO 13399Cat# PENTA 24N250PF020Series PentaCut
$67.21List $86.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6093325 is a ISO 13399 solid carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
ChipbreakerPF
Coating finishTiN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.0984
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code24N250
Insert stylePENTA
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberPENTA 24N250PF020
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.2559
Multi use toolYes
Overall width0.1575
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
