Iscar

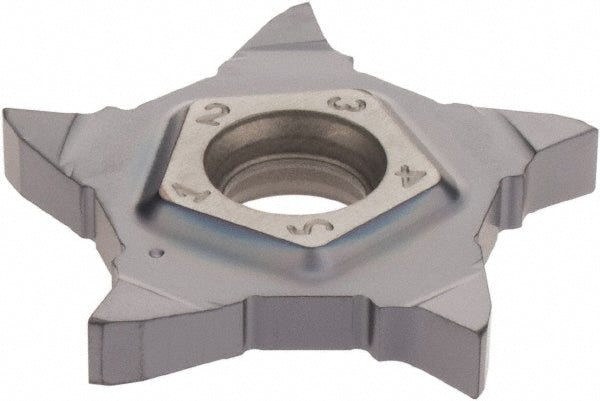

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6093335
MFR# 6093335ISO/ANSI# ISO 13399Cat# PENTA 24N300PF020Series PentaCut
$67.21List $86.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6093335 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerPF
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code24N300
Insert stylePENTA
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberPENTA 24N300PF020
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.2560
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
Stocking categoryD
