Iscar

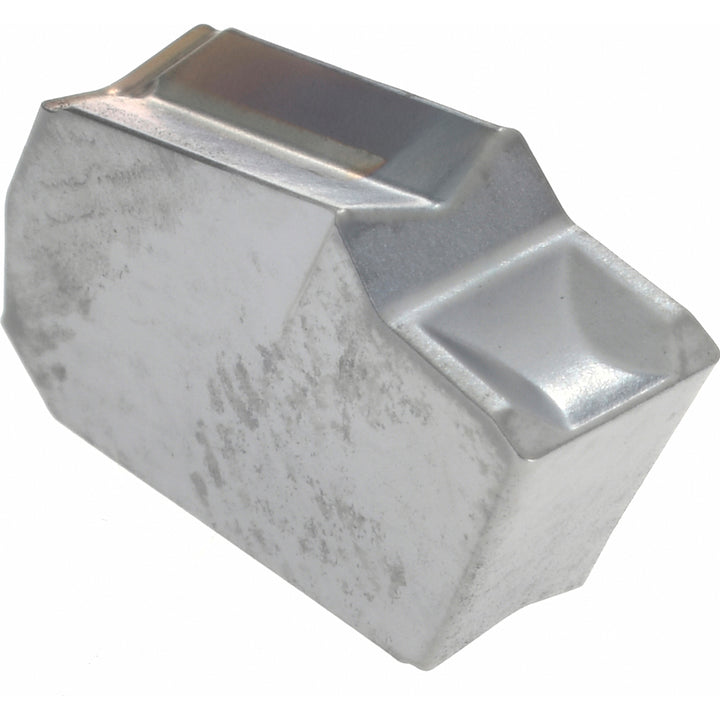

Solid Carbide Insert, Grade IC328, Coated - Iscar 6094135
MFR# 6094135Series Self-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6094135 is a solid carbide indexable insert, grade IC328, Coated coated.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0094
Cutting tool applicationGrooving; Parting
Cutting width0.1614
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size code4
Insert styleGTN
Lead angle0
Lead angle directionNeutral
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolYes
Relief angle7.00
Single or double endSingle
