Iscar

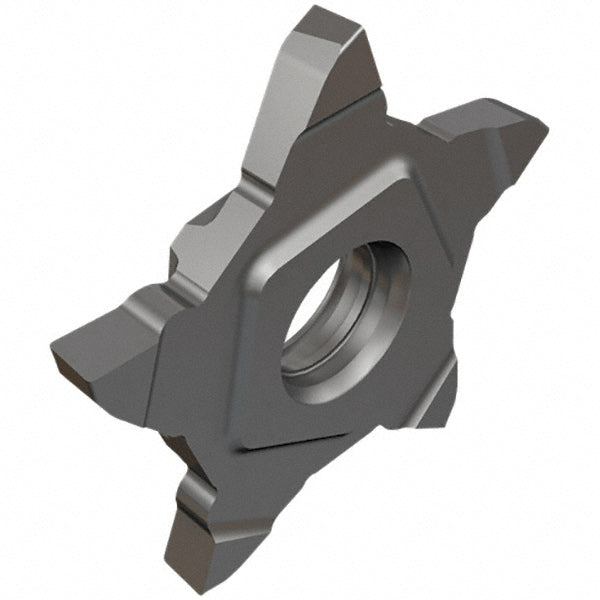

PENTA 24N400NF020RS Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6094624
MFR# 6094624ISO/ANSI# PENTA 24N400NF020RSCat# PENTA 24N400NF020RSSeries PentaCut
$66.04List $84.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6094624 is a PENTA 24N400NF020RS solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerNF
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting width0.1570
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size24N400
Insert size code24N400NF020
Insert stylePENTA
Iso codePENTA 24N400NF020RS
Manufacturers catalog numberPENTA 24N400NF020RS
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.2560
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Primary workpiece materialUniversal
StandardsISO 13399
