Iscar

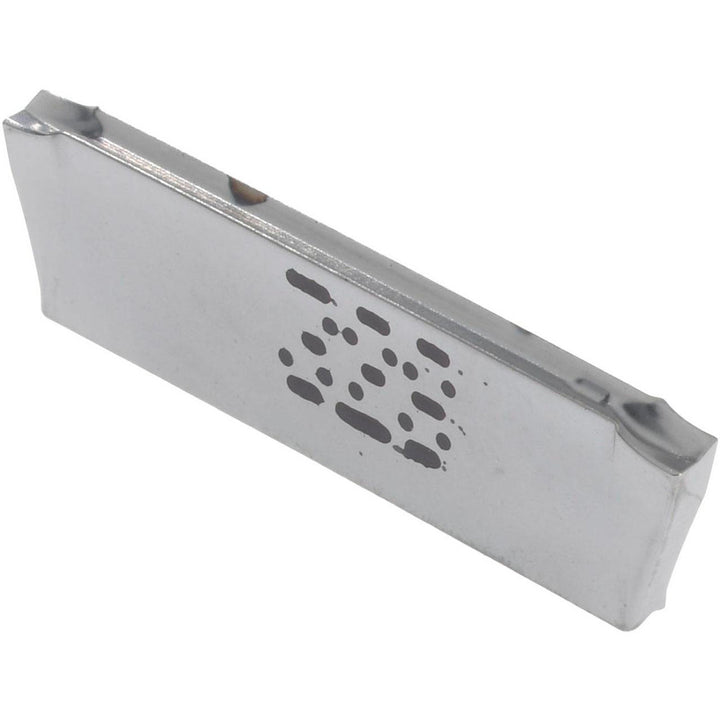

ISO 13399 Carbide Insert, Grade IC328, Coated - Iscar 6094667
MFR# 6094667ISO/ANSI# ISO 13399Cat# DGR 1402J-8DSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialCarbide
CoatingCoated
Description
The Iscar 6094667 is a ISO 13399 carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0063
Cutting tool applicationParting
Cutting width0.0551
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size code1402
Insert styleDGR
Iso codeISO 13399
Lead angle8
Lead angle directionRight Hand
Manufacturers catalog numberDGR 1402J-8D
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.5906
Multi use toolNo
Overall length0.6220
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
