Iscar

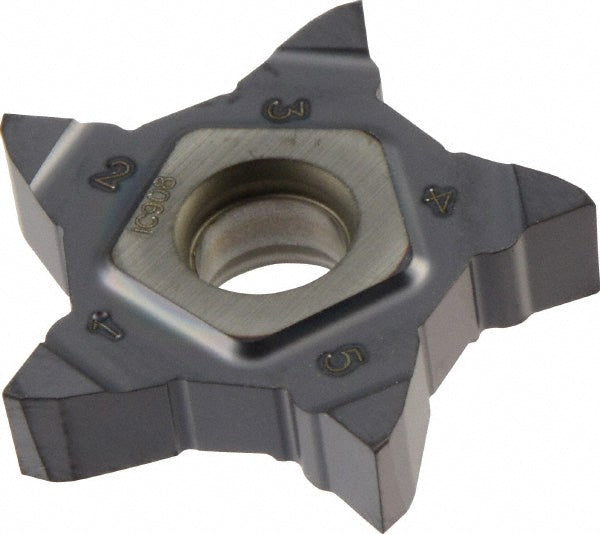

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6095023
MFR# 6095023ISO/ANSI# ISO 13399Series PentaCut
$66.04List $84.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6095023 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerNF
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1890
Insert handRight Hand
Insert materialSolid Carbide
Insert size code24N480
Insert stylePENTA
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.2559
Multi use toolYes
Overall width0.1890
Primary workpiece materialUniversal
StandardsISO 13399
