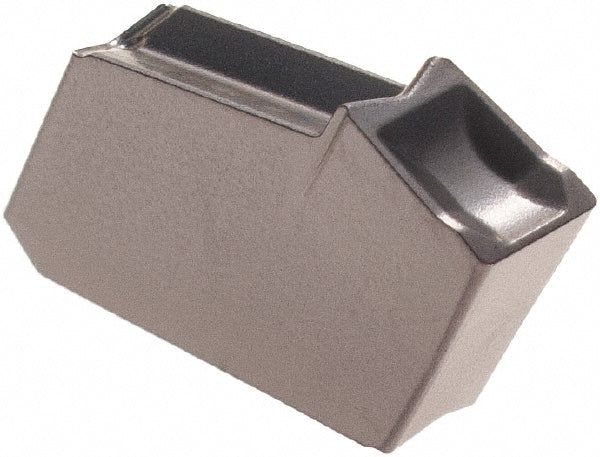

GSFN 3 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6095369

Iscar

GSFN 3 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6095369

MFR# 6095369ISO/ANSI# GSFN 3Cat# GSFN 3 IC908Series Self Grip

$18.95List $24.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 6095369 is a GSFN 3 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeGSFN 3 IC908
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutter series compatibilitySGSF
Cutting edge effective length0.1190
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1189
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size3
Insert size code3
Insert styleGSFN
Iso codeGSFN 3
Manufacturers catalog numberGSFN 3 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1189
