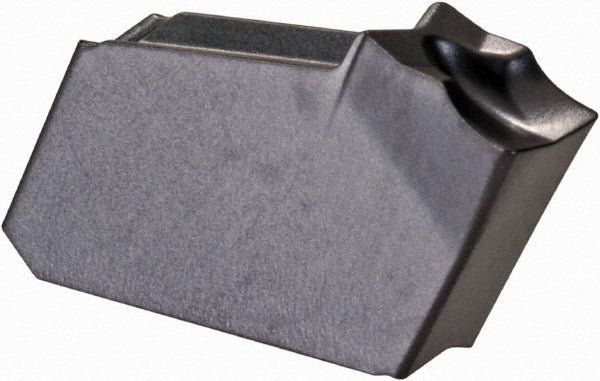

GSFN 3J Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6095399

Iscar

GSFN 3J Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6095399

MFR# 6095399ISO/ANSI# GSFN 3JCat# GSFN 3J IC908Series Self Grip

$18.95List $24.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 6095399 is a GSFN 3J solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeGSFN 3J IC908
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0098
Cutter series compatibilitySGSF
Cutting edge effective length0.1180
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.1181
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size3
Insert size code3
Insert styleGSFN
Iso codeGSFN 3J
Manufacturers catalog numberGSFN 3J IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1180
