Iscar

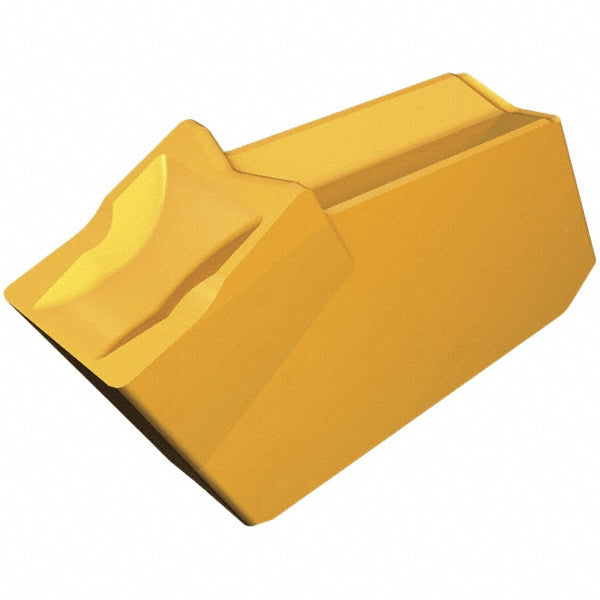

GSFN 3J Solid Carbide Insert, Grade IC928, TiAlN - Iscar 6095419
MFR# 6095419ISO/ANSI# GSFN 3JCat# GSFN 3J IC928Series Self Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6095419 is a GSFN 3J solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeGSFN 3J IC928
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0098
Cutter series compatibilitySGSF
Cutting edge effective length0.1180
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.1181
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size3
Insert size code3
Insert styleGSFN
Iso codeGSFN 3J
Manufacturers catalog numberGSFN 3J IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1180
