Iscar

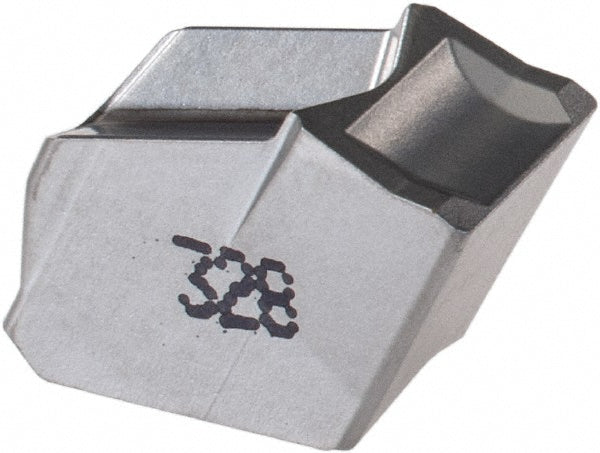

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6096095
MFR# 6096095ISO/ANSI# ISO 13399Cat# GFN 9Series Self-Grip
$38.44List $49.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6096095 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0185
Cutting tool applicationGrooving; Parting
Cutting width0.3740
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code9
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberGFN 9
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolYes
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
